COMPUKIT 1  Logic Simulator Digital Computers (x2)  c1970

The Compukit 1 was created by Dr Ravi Raizada, who founded Limrose Electronics of Lymm, Cheshire, it was designed as a logic trainer to teach people how basic logic gates operated.

*

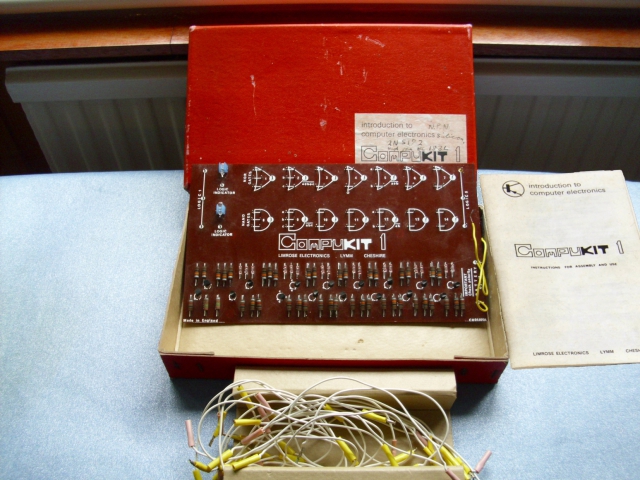

COMPUKIT 1  Logic Simulator Digital Computer  c1970

This is the second Compukit 1 here, together with instruction manual 'Introduction to logic and digital computers'.  This being a 38-page black and white printed instruction manual.

The kit belonged to the late Owen Bishop (1927-2016), Owen was an electronics book author, he also wrote regularly for electronics magazines, e.g., Practical Electronics from the early 1970s.

In 1980 he started writing some of the first home-computing and programming books for the BBC Micro, Amstrad, Commodore 64 etc.  He also wrote many electronics coursework books.

Owen's daughter Dee, adds a memory of her father.

I remember lots of circuit boards and electronics items, he used to work in the 'boiler room' at home, which was set up as a sort of workshop/lab and where he used to spend many hours working.

The Compukit 1 is another good example of our excellent British ingenuity in bringing computing to the people back in 1970.

*

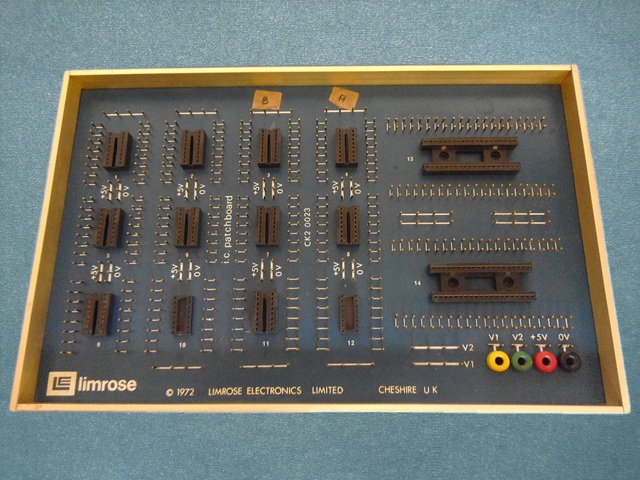

These are I.C. based types of Limrose Logic Simulator Digital Computers here.  c1970's

These types of Limrose Logic Simulator Digital Computers are twice the dimensions of the COMPUKIT 1 (The size of four COMPUKIT's.) and with their own built-in PSU supplies.

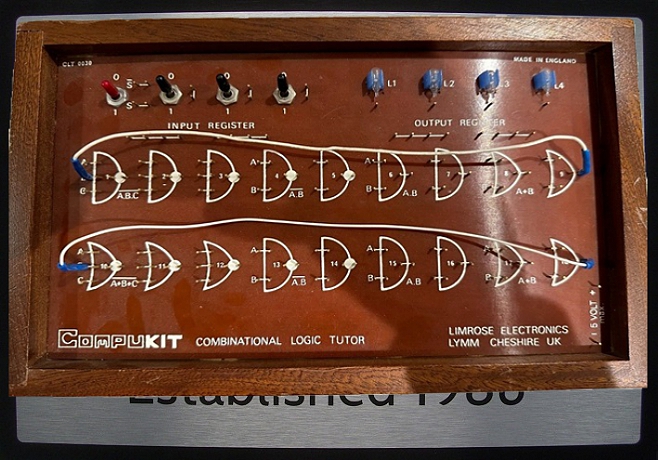

The Combinational type of Limrose Logic Simulator. (There are 4 of this type here.)

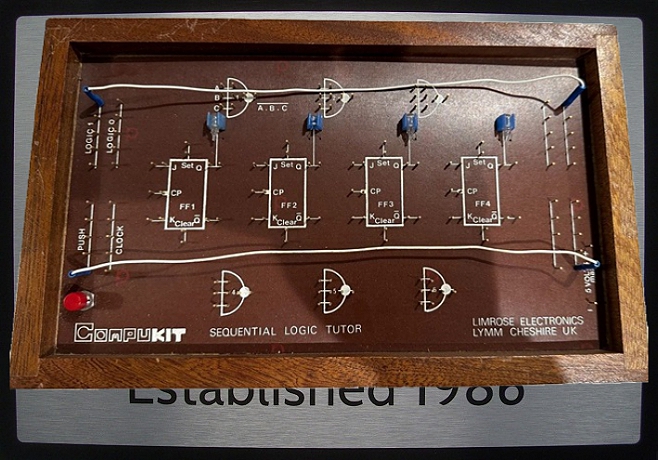

The Sequential type of Limrose Logic Simulator. (There are 3 of this type here.)

The COMPUKIT 1 Logic Simulator Digital Computer from Practical Electronics 1970.

The early release of COMPUKIT 1 had a white background identification area.

This appears to have changed about October 1970 to the white text and graphics area.

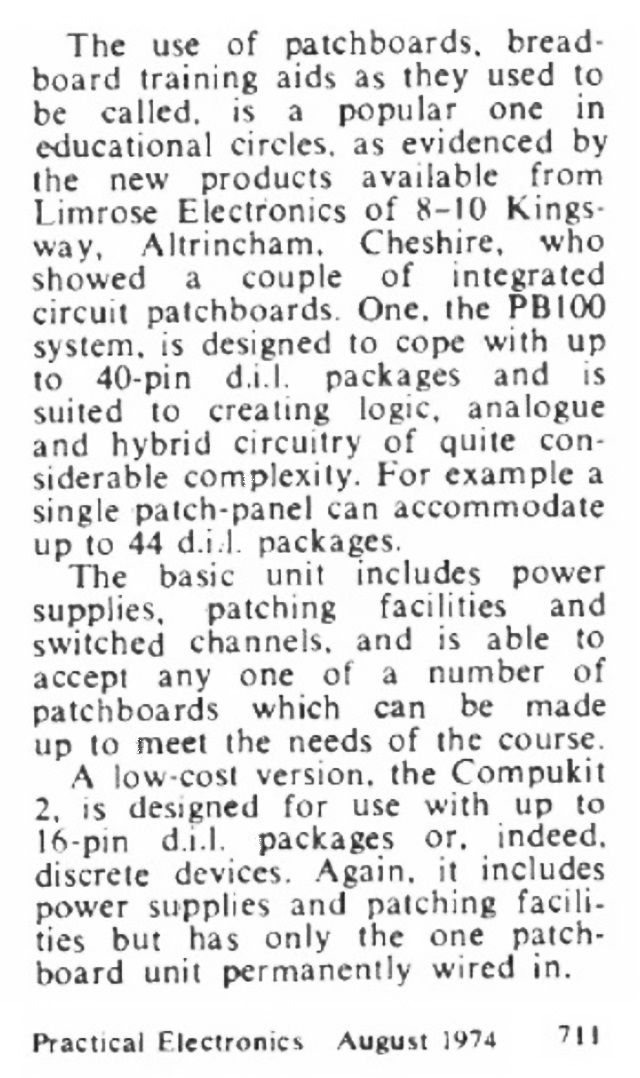

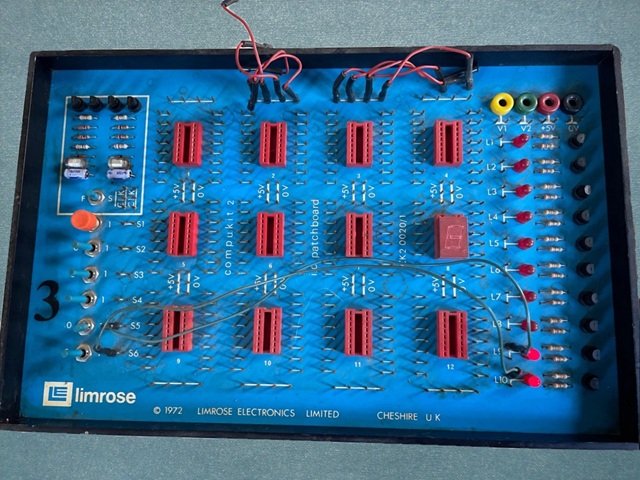

Also noted is that both the COMPUKIT 1 Deluxe and COMPUKIT 2 are available in Dec.
